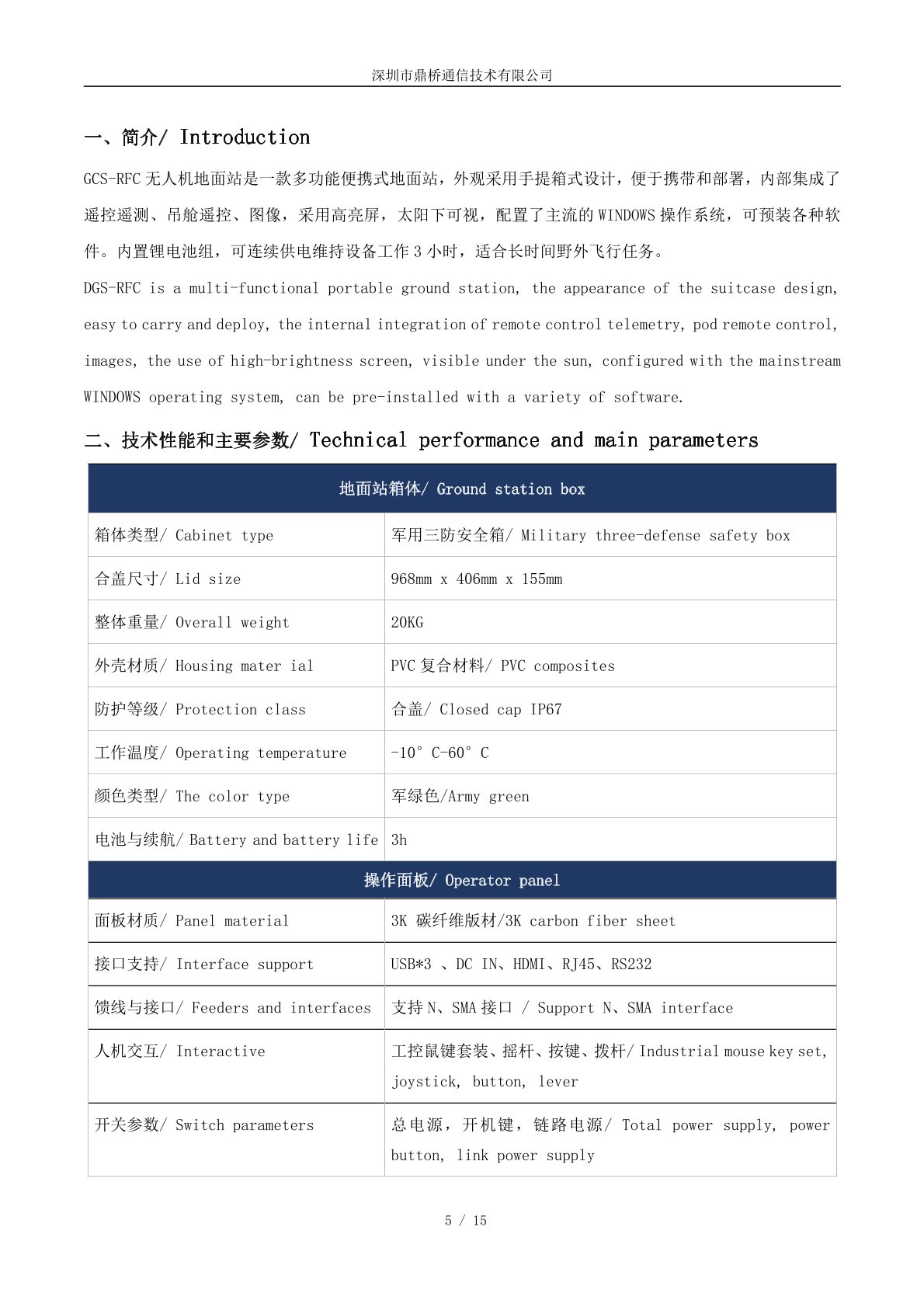

技术参数：
| 地面站箱体 Ground station box |
|
| 箱体类型 Box type |
军用三防安全箱 Military three-guard safety box |
| 合盖尺寸 Cover size |
968MM*406MM*155MM |
| 整体重量 Overall weight |
20KG |
| 外壳材质 Case material |
PVC复合材料 PVC Composite material |
| 防护等级 Class of protection |
合盖IP67 Close the lid ip67 |
| 工作温度 Operating temperature |
-10°C~ 60°C |
| 颜色类型 Color type |
哑光黑 Matte black |
| 便携特点 Portable feature |
开盖即使用，外置提手，内置拉杆 Open cover for use, external handle, built-in pull rod |
| 电池与续航 Battery and battery life |
续航4小时 Battery life of 4 hours |

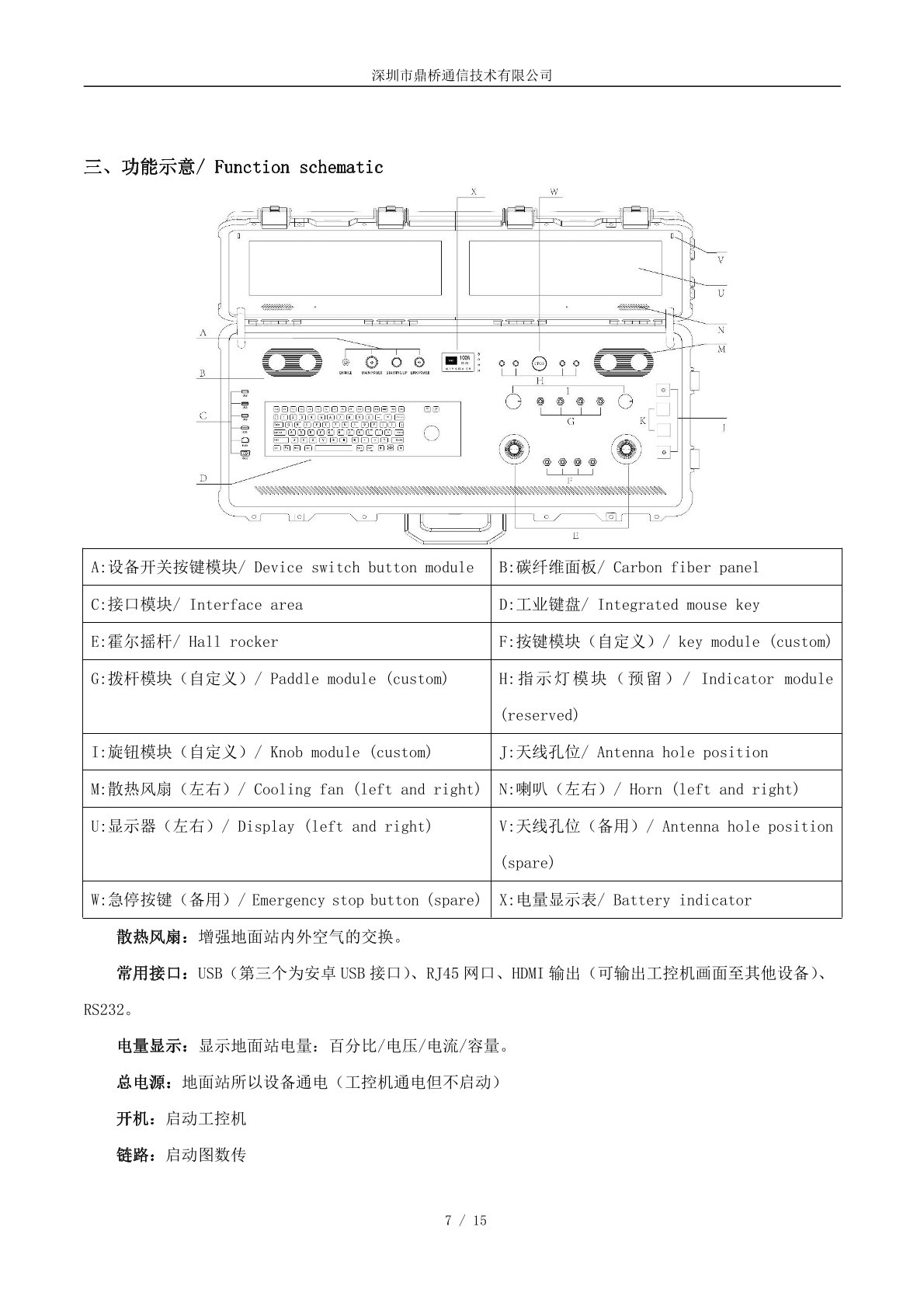

| 操作面板 Operation panel |
|
| 面板材质 Panel material |
3K 碳纤维版材 3K carbon fiber plate |
| 接口支持 Interface support |
USB 、HDMI、RJ45 |
| 馈线与接口 Feeder and interface |
支持N、SMA接口 N and SMA interfaces are supported |
| 人机交互 Human-computer interaction |
工控鼠键套装、摇杆、按键、拨杆 Industrial mouse key set, rocker, button, dial lever |
| 开关参数 Switching parameter |
总电源，开机键，链路电源 Main power, power button, link power |
| 其他设备 Other equipment |
工业散热风扇 Industrial cooling fan |
| 工控主机 Industrial control host |
|
| 处理器 CPU |
I5 6400T |
| 操作系统 Operating system |
Windows 10 |
| 内存 Internal memory |
8G |
| 硬盘 Hard disk |
125G SSD |
| 显卡 Graphics card |
Intel HD Graphics 530 |
| 网卡 Network | 1000M |
| 左右双显示器 Left and right display |
|
| 尺寸 Size |
17.3 inch |
| 分辨率 Resolution |
1920*1080 |
| 屏幕比例 Screen scale |
16:9 |
| 背光类型 Backlight type |
LED |
| 最大亮度 Maximum brightness |
1000nit（自动感应调节） (Automatic induction regulation) |
| 输入接口 Input interface |
HDMI（双屏支持扩展功能） (Dual screen support for expansion) |
| 遥控功能 Remote control function |
|
| 三轴摇杆*2 Three-axis rocker *2 |
控制前进、后退、方向（上下左右）等 Control forward, backward, direction (up, down, left and right), etc |
| 拨杆*4 Lever *4 |
模式切换等 Mode switching |
| 旋钮*2 Knob *2 |
变焦、曝光等 Zoom, exposure, etc |
| 按键4、紧急按键*1 Button 4, emergency button *1 |
拍照、录像等 Take pictures, video, etc |
| 通信协议 Communication protocol |
USB HID外设 peripheral |
| 电池&电源 Batteries & Power Supplies |
|
| 供电方式 Power supply mode |
内置电池和外接电源 Built-in battery and external power supply |

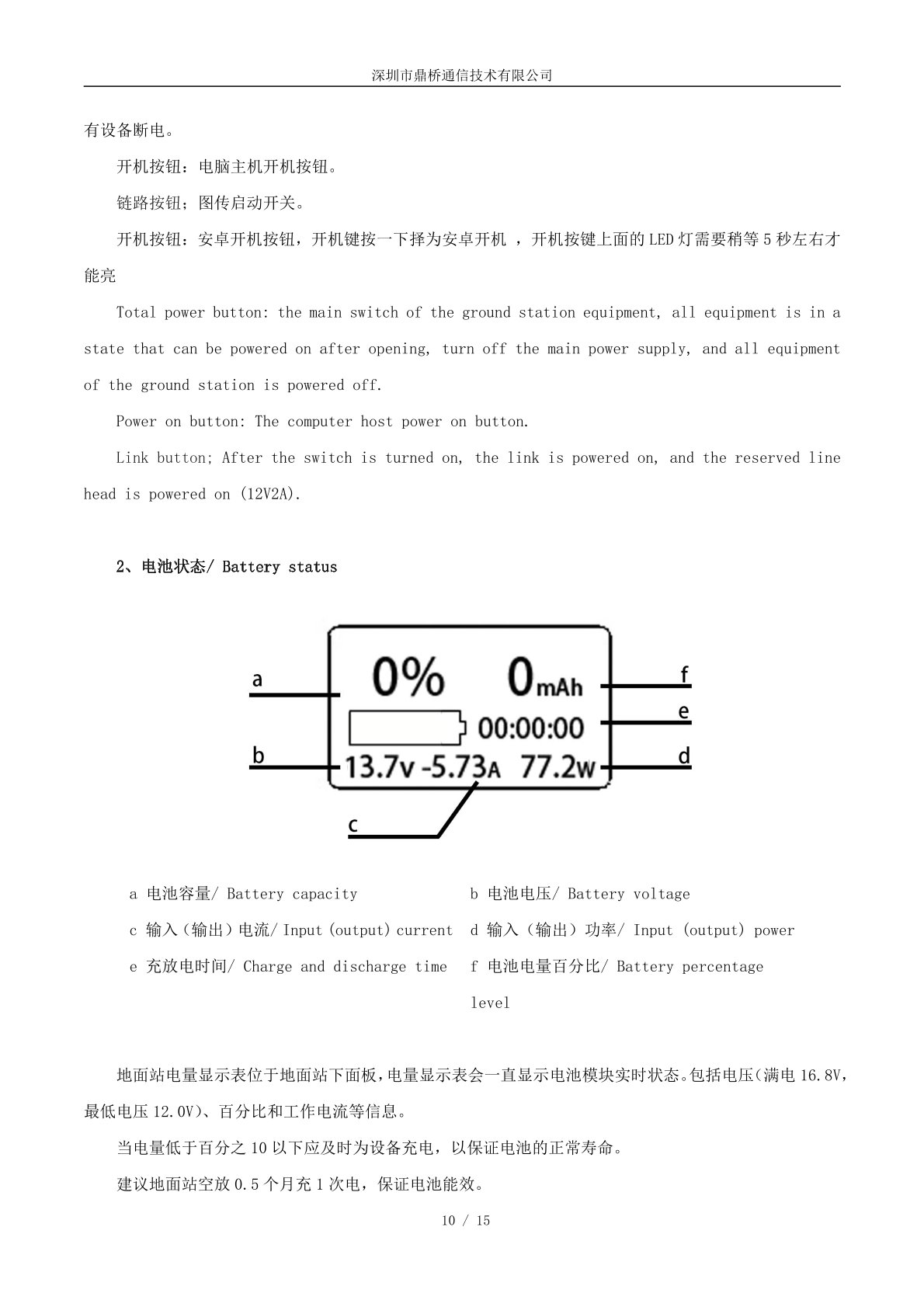

| 显示内容 Display content |
当前电压、当前电流、当前剩余容量、功率等 Current voltage, current current, current remaining capacity, power, etc |
| 管理系统保护 Management system protection |
过电流保护、过压保护、低压保护、过容量保护、过功率保护 Over current protection, over voltage protection, low voltage protection, over capacity protection, over power protection |
| 电池保护 Battery protection |
过电流保护、过温保护、过压保护、低压保护 Over current protection, over temperature protection, over voltage protection, low voltage protection |
| 电池续航时间 Battery life |
续航4小时、32AH Battery life 4 hours, 32AH |
